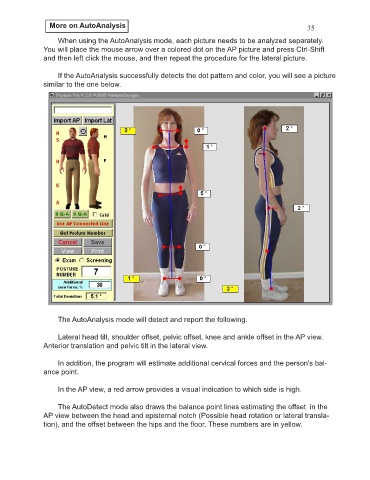

More on AutoAnalysis 35
When using the AutoAnalysis mode, each picture needs to be analyzed separately.
You will place the mouse arrow over a colored dot on the AP picture and press Ctrl-Shift
and then left click the mouse, and then repeat the procedure for the lateral picture.
If the AutoAnalysis successfully detects the dot pattern and color, you will see a picture
similar to the one below.
The AutoAnalysis mode will detect and report the following.
Lateral head tilt, shoulder offset, pelvic offset, knee and ankle offset in the AP view.
Anterior translation and pelvic tilt in the lateral view.
In addition, the program will estimate additional cervical forces and the person's bal-
ance point.
In the AP view, a red arrow provides a visual indication to which side is high.
The AutoDetect mode also draws the balance point lines estimating the offset in the
AP view between the head and episternal notch (Possible head rotation or lateral transla-
tion), and the offset between the hips and the floor. These numbers are in yellow.
