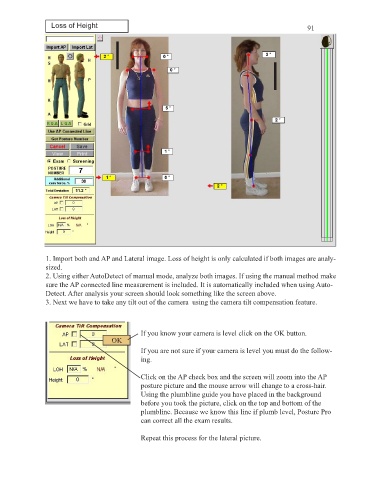

Loss of Height 91

1. Import both and AP and Lateral image. Loss of height is only calculated if both images are analy-
sized.
2. Using either AutoDetect of manual mode, analyze both images. If using the manual method make
sure the AP connected line measurement is included. It is automatically included when using Auto-
Detect. After analysis your screen should look something like the screen above.
3. Next we have to take any tilt out of the camera using the camera tilt compensation feature.

If you know your camera is level click on the OK button.
OK
If you are not sure if your camera is level you must do the follow-
ing.

Click on the AP check box and the screen will zoom into the AP
posture picture and the mouse arrow will change to a cross-hair.
Using the plumbline guide you have placed in the background
before you took the picture, click on the top and bottom of the
plumbline. Because we know this line if plumb level, Posture Pro
can correct all the exam results.

Repeat this process for the lateral picture.
